Arc
arc() method creates an arc / curve (used to create circles or partial circles).
Tip: To create a circle with arc(), set the start angle to 0 and the end angle to 2 * Math.PI.
| Parameter | description |
|---|---|
| x | The x coordinate of the center of the circle. |
| y | The y coordinate of the center of the circle. |
| r | radius of the circle. |
| sAngle | starting angle in radians. (The arc's three o'clock position is 0 degrees). |
| eAngle | end angle in radians. |
| counterclockwise | Optional. Specifies whether draw the arc counterclockwise or clockwise. False = clockwise, true = counterclockwise. |

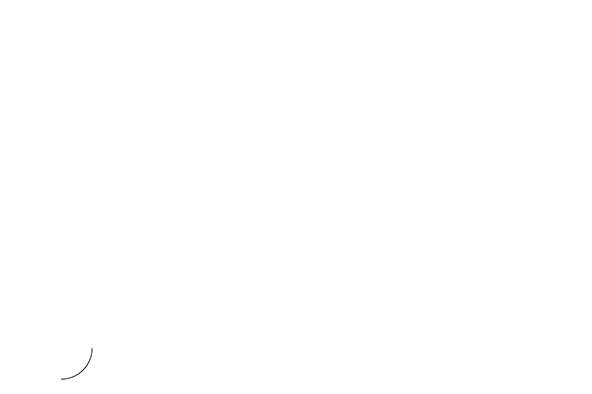

Example
Var ctx = node.getComponent(cc.Graphics);
ctx.arc(100,75,50,0,1.5 * Math.PI);
ctx.fill();
