Arc

arc() method creates an arc / curve (used to create circles or partial circles). Tip: To create a circle with arc(), set the start angle to 0 and the end angle to 2 * Math.PI.

Parameter description
x The x coordinate of the center of the circle.
y The y coordinate of the center of the circle.
r radius of the circle.
sAngle starting angle in radians. (The arc's three o'clock position is 0 degrees).
eAngle end angle in radians.
counterclockwise Optional. Specifies whether draw the arc counterclockwise or clockwise. False = clockwise, true = counterclockwise.

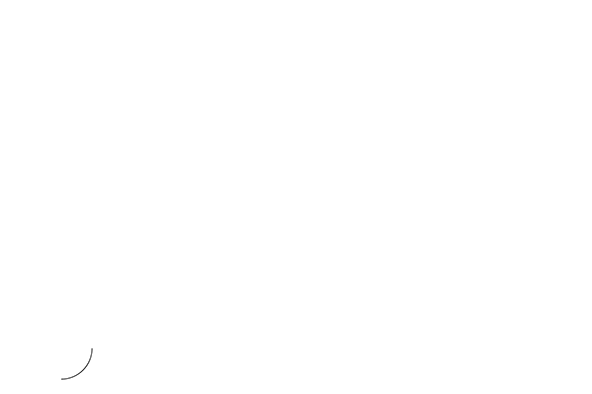

Example

Var ctx = node.getComponent(cc.Graphics);
ctx.arc(100,75,50,0,1.5 * Math.PI);
ctx.fill();


Return to Graphics Component Reference
