Rect
Use rect()
method to create a rectangle.
Parameter | Description |
---|---|
x | The x coordinate of the lower left point of the rectangle. |
y | The y coordinate of the center of the lower left point of the rectangle. |
width | the width of rectangle. |
height | the height of rectangle. |
Example

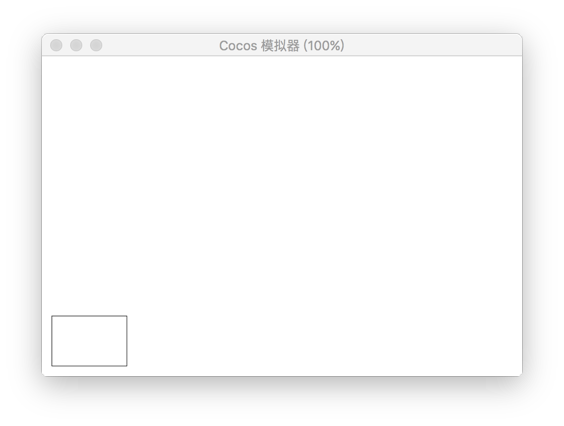

var ctx = node.getComponent(cc.Graphics);
ctx.rect(20,20,150,100);
ctx.fill();

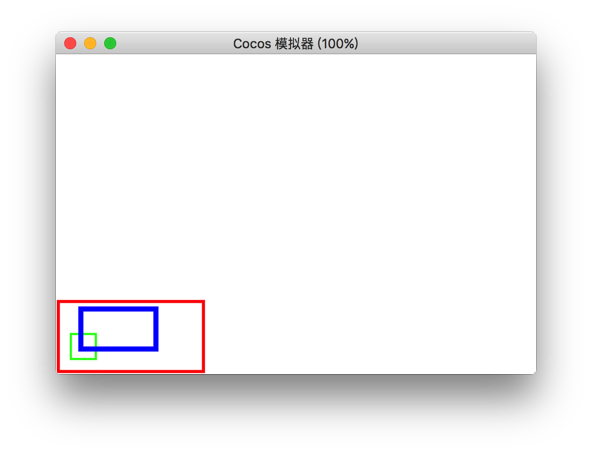

var ctx = node.getComponent(cc.Graphics);
// 红色矩形
ctx.lineWidth = 6;
ctx.strokeColor = cc.Color.RED;
ctx.rect(5,5,290,140);
ctx.fill();
// 绿色矩形
ctx.lineWidth=4;
ctx.strokeColor = cc.Color.GREEN;
ctx.rect(30,30,50,50);
ctx.fill();
// 蓝色矩形
ctx.lineWidth = 10;
ctx.strokeColor = cc.Color.BLUE;
ctx.rect(50,50,150,80);
ctx.fill();
Return to Graphics Component Reference.
