Shadow

In the 3D world, light and shadows have always been extremely important components. They can enrich the entire environment, good-quality shadows can achieve the effect of false realization, and make the entire world have a three-dimensional feel to it.

Here is an example of a shadow from Cocos Creator: shadow

Turning on shadows

Cocos Creator currently supports two shadow modes, shadow Map and planer Shadow for developers to use.

  • It takes three steps to enable a Planar Shadow in Cocos Creator:

    1. Select the Scene node on the level manager, you can see the following panel, check the Enabled property of Shadows. location of enable shadow

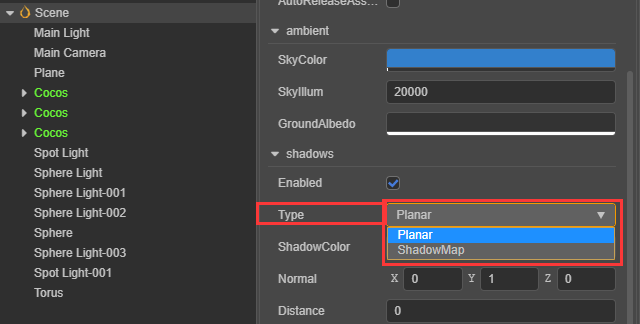

    2. Choose Type as Planar location of shadow type

    3. Set ShadowCastingMode to ON in the model that needs to display shadows. ShadowCastingModes property

    Note: Planar Shadow will only be cast on the shadow surface. Adjusting the directional light angle can adjust the shadow projection.

  • It takes four steps to enable a Shadow Map in Cocos Creator:

    1. Select the Scene node on the level manager, you can see the following panel, check the Enabled property of Shadows. location of enable shadow

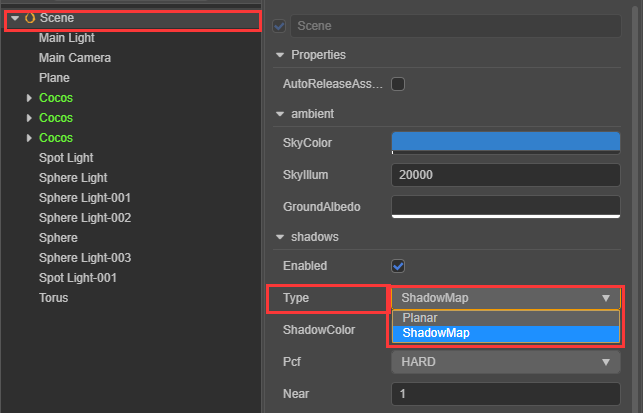

    2. Choose Type as ShadowMap location of shadow type

    3. Set ShadowCasting to ON in the model that needs to display shadows. ShadowCastingModes property

    4. Set ReceiveShadow to ON in the model that needs to display shadows. ReceiveShadowModes property

    Note: ReceiveShadow receive the shadow effect. ShadowCasting produces a shadow effect.

PlanarShadows panel

planar shadow panel details

The following describes all the properties of the panel:

Properties Explanation
Enabled Whether to turn on the shadow effect
Type Choose shade type
ShadowColor Color value of the resulting shadow
Normal Normals to vertical and shadow planes
Distance The distance of the shadow plane from the coordinate origin in the direction of the normal

ShadowMap panel

shadow map panel details

The following describes all the properties of the panel:

Properties Explanation
Enabled Whether to turn on the shadow effect
Type Choose shade type
ShadowColor Color value of the resulting shadow
Pcf Set the anti-aliasing level of the shadow edge
Near Set the near clipping plane of the main light source shadow camera
Far Set the far clipping plane of the main light source shadow camera
OrthoSize Set the ortho viewport size of the main light source shadow camera
ShadowMapSize Set the shadow map size
Aspect Set the ortho viewport aspect ratio of the main light source shadow camera

Continue to the Scene documentation.
