arc

The arc() method creates an arc/curve (used to create circles or partial circles).

Note: To create a circle with arc(), set the start angle to 0 and the end angle to 2 * Math.PI.

Parameter Description
x The x coordinate of the center of the circle.
y The y coordinate of the center of the circle.
r Radius of the circle.
sAngle Starting angle in radians. (The arc's three o'clock position is 0 degrees).
eAngle End angle in radians.
counterclockwise Optional. Specifies whether draw the arc counterclockwise or clockwise. False = clockwise, true = counterclockwise.

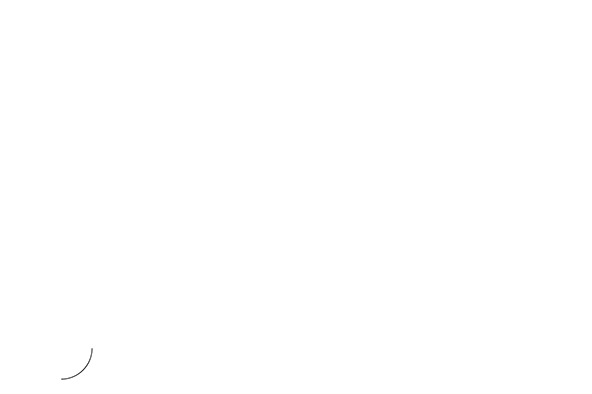

Example

Var ctx = node.getComponent(cc.Graphics);
ctx.arc(100, 75, 50, 0, 1.5 * Math.PI);
ctx.fill();


Return to the Graphics Component Reference documentation.
