ShapeModule
Public attributes:
Properties | Features |
---|---|
position | Relative to the location of the installed node. |
rotation | Rotation relative to the mounted node. |
scale | Relative to the scale of the mounted node. |
sphericalDirectionAmount | Represents the interpolation between the current emission direction and the connection direction from the current position to the center of the node. |
randomPositionAmount | Indicates the offset from the current launch position. |

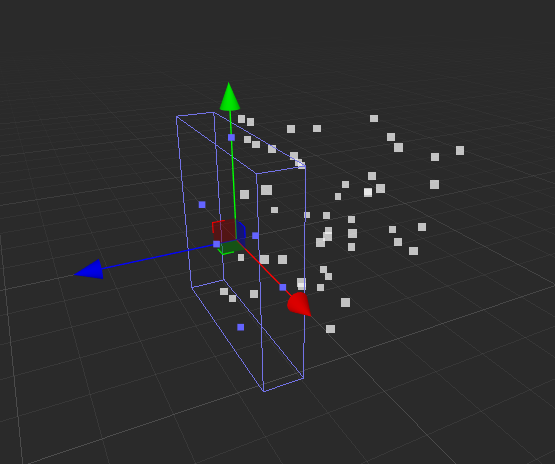

- Box
Properties | Features |
---|---|
shapeType | Box |
emitFrom | From which part of the block the particles are emitted, edge: border; shell: surface; volume: inside |
- Shpere\Hemisphere)
Properties | Features |
---|---|
shapeType | Shpere\Hemisphere |
radius | Sphere radius |
radiusThickness | 0 means launch from the surface of the ball, 1 means launch from the inside of the sphere, and 0 ~ 1 means launch from the surface to the center of the sphere |
- Circle
Properties | Features |
---|---|
shapeType | Circle |
radius | Radius of circle |
radiusThickness | 0 means launching from the circle, 1 means launching from inside the circle, and 0 ~ 1 means launching from the circle to the center of the circle. |
arc | Represents emission in a sector of the circle. |
mode | Represents the emission method of particles in the fan-shaped area, random: random position, loop: cyclic emission in a certain direction, the same direction every time, pingPong: cyclic emission, every time On the contrary spread: indicates that the particles are emitted at a certain interval, for example, 0 indicates that they can be emitted at any position, and 0.1 indicates that they are emitted every tenth of the circumference. |
speed | Represents the speed of particles emitted along the circumference. |
spread | It indicates where the particles are emitted in the arc when they are emitted along the circumference. For example, if arc is 120° and spread is 0.1, particles will be emitted every 12° from the arc. |
- Cone
Properties | Features |
---|---|
shapeType | Cone |
angle | Angle between cone axis and generatrix. |
radius | Radius of the top of the cone. |
length | The axial length of the top section of the cone from the bottom. |
radiusThickness | 0 means launching from the circle, 1 means launching from inside the circle, and 0 ~ 1 means launching from the circle to the center of the circle. |
arc | Represents emission in a sector of the circle. |
mode | Represents the emission method of particles in the fan-shaped area, random: random position, loop: cyclic emission in a certain direction and the same direction every time, pingPong: cyclic emission, every time on the contrary, spread: indicates that the particles are emitted at a certain interval, for example, 0 indicates that they can be emitted at any position, and 0.1 indicates that they are emitted every tenth of the circumference. |
speed | Represents the speed of particles emitted along the circumference. |
spread | It indicates where the particles are emitted in the arc when they are emitted along the circumference. For example, if arc is 120° and spread is 0.1, particles will be emitted every 12° from the arc. |
