ShapeModule
Public attributes:
| Properties | Features |
|---|---|
| position | Relative to the location of the installed node. |
| rotation | Rotation relative to the mounted node. |
| scale | Relative to the scale of the mounted node. |
| sphericalDirectionAmount | Represents the interpolation between the current emission direction and the connection direction from the current position to the center of the node. |
| randomPositionAmount | Indicates the offset from the current launch position. |

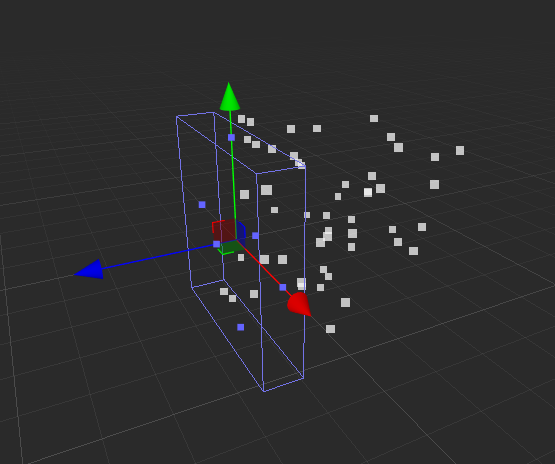

- Box
| Properties | Features |
|---|---|
| shapeType | Box |
| emitFrom | From which part of the block the particles are emitted, edge: border; shell: surface; volume: inside |

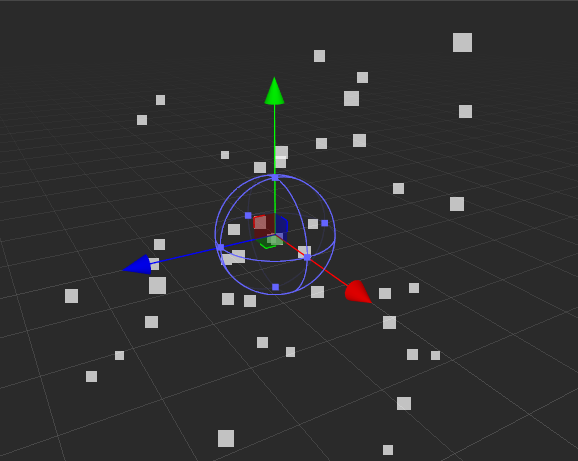

- Shpere\Hemisphere)
| Properties | Features |
|---|---|
| shapeType | Shpere\Hemisphere |
| radius | Sphere radius |
| radiusThickness | 0 means launch from the surface of the ball, 1 means launch from the inside of the sphere, and 0 ~ 1 means launch from the surface to the center of the sphere |
- Circle
| Properties | Features |
|---|---|
| shapeType | Circle |
| radius | Radius of circle |
| radiusThickness | 0 means launching from the circle, 1 means launching from inside the circle, and 0 ~ 1 means launching from the circle to the center of the circle. |
| arc | Represents emission in a sector of the circle. |
| mode | Represents the emission method of particles in the fan-shaped area, random: random position, loop: cyclic emission in a certain direction, the same direction every time, pingPong: cyclic emission, every time On the contrary spread: indicates that the particles are emitted at a certain interval, for example, 0 indicates that they can be emitted at any position, and 0.1 indicates that they are emitted every tenth of the circumference. |
| speed | Represents the speed of particles emitted along the circumference. |
| spread | It indicates where the particles are emitted in the arc when they are emitted along the circumference. For example, if arc is 120° and spread is 0.1, particles will be emitted every 12° from the arc. |

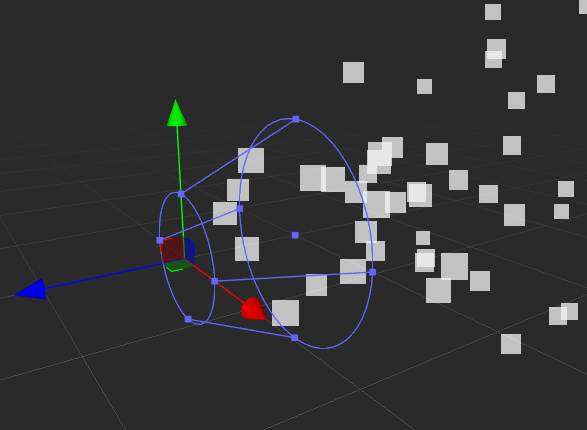

- Cone
| Properties | Features |
|---|---|
| shapeType | Cone |
| angle | Angle between cone axis and generatrix. |
| radius | Radius of the top of the cone. |
| length | The axial length of the top section of the cone from the bottom. |
| radiusThickness | 0 means launching from the circle, 1 means launching from inside the circle, and 0 ~ 1 means launching from the circle to the center of the circle. |
| arc | Represents emission in a sector of the circle. |
| mode | Represents the emission method of particles in the fan-shaped area, random: random position, loop: cyclic emission in a certain direction and the same direction every time, pingPong: cyclic emission, every time on the contrary, spread: indicates that the particles are emitted at a certain interval, for example, 0 indicates that they can be emitted at any position, and 0.1 indicates that they are emitted every tenth of the circumference. |
| speed | Represents the speed of particles emitted along the circumference. |
| spread | It indicates where the particles are emitted in the arc when they are emitted along the circumference. For example, if arc is 120° and spread is 0.1, particles will be emitted every 12° from the arc. |
